Filtering using a segmented image

Hey everyone!



I found this example (link below) of using a picture of an engine, which has parts that are clickable and then automatically filter another graph. Now I want to do something similar for other vehicles, but how would i go about creating this?



https://fleetdemoapp.azurewebsites.net/



Is there anyone who could point me in the right direction / knows of a custom visual of some sorts for this?



Thank you!

1 ACCEPTED SOLUTION
v-jiascu-msft
Employee
Employee

Hi @RalphO,



It could be this custom visual. Please also refer to page 3 of this demo





Best Regards,
Dale

Community Support Team _ Dale
If this post helps, then please consider Accept it as the solution to help the other members find it more quickly.

View solution in original post

4 REPLIES 4
v-jiascu-msft
Employee
Employee

Hi @RalphO,



It could be this custom visual. Please also refer to page 3 of this demo





Best Regards,
Dale

Community Support Team _ Dale
If this post helps, then please consider Accept it as the solution to help the other members find it more quickly.

Hi @v-jiascu-msft



That could indeed be it. Though then I'll have to change the format of our data, since each category has it's own column.



To my knowledge, with the proposed visual you can not assign a column to each segment? Is there another way of doing this?

Hi @RalphO,

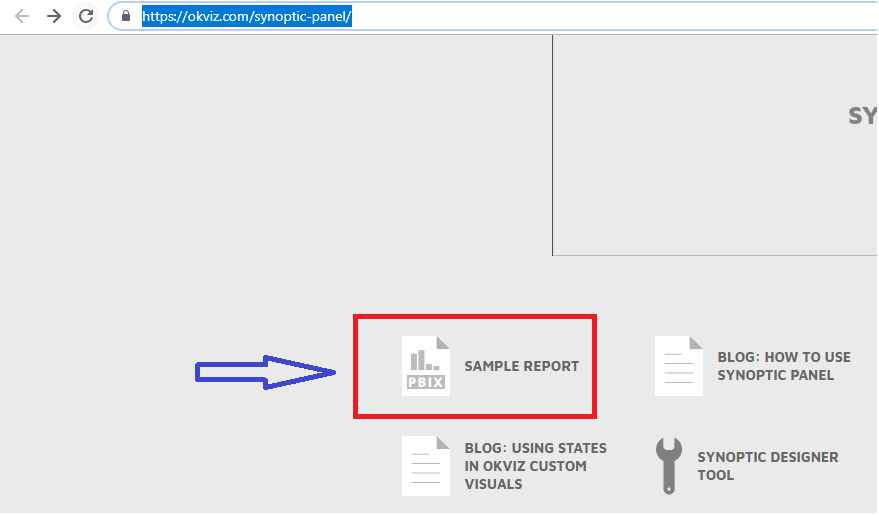

I found that report here, which has an instruction. It is created by https://synoptic.design/ indeed. You also can download a demo from the official site

I don't aware any other ways. The graph needs to be created by users. It isn't a task that a normal visual can do.

Filtering-using-a-segmented-image



Best Regards,
Dale

Community Support Team _ Dale
If this post helps, then please consider Accept it as the solution to help the other members find it more quickly.

Thank you for the answers, I'll try it out!
