Conditional formatting for values apparing through DAX logic and visualised in card visual.

I have created a DAX logic for getting values based on few logic to measure a metric, where my final result appears both in amounts and percentage and later I bring it this over to a card visual like...
Need Help
  • v-gizhi-msft's avatar
    v-gizhi-msft
    6 years ago

    Hi,



    You can set Card visual->Format->Data Label->conditional formatting.

    I create a simple sample to show.

    Create a color measure to check:

    Color = IF(SUM('Table'[Value])>20,"#FF0000","#00FF00")

    Apply this measure to the Card visual:

    And it shows:

    Hope this helps.



    Best Regards,

    Giotto Zhi



VasTg's avatar
VasTg
Memorable Member
6 years ago

Prash546

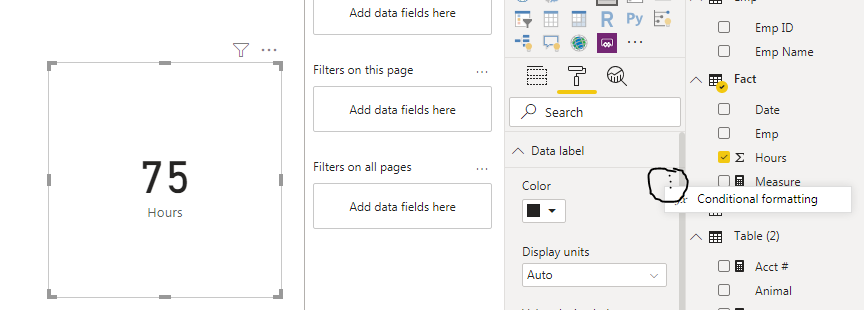

Select the card visual. Under the data label, on the right cornor, you would see three dots(eclipse icon). When you click, you would see conditional formatting.





You could set the color based on Rules..





If it helps, mark it as a solution

Kudos are nice too
