Conditional formatting compared to the previous month

[Syndicate_Admin]

Good morning

I have a query: Is it possible to incorporate conditional formatting icons to an array that has as columns the months of management, rows a data "x" and as values the maximum of this same?

I am trying to perform this task but it always pulls me as BASE DATA of the values, the start of the time of the DATE field, when what I need is that the icons show the change with respect to the previous month:

For example, in the row "AGNCIAS" for the month December and January 2021 you should have an AMBER icon, while for February a RED icon because it increased by 1 compared to January, then for March, return to AMBER because it remains with respect to February.

Then the GREEN icon should appear for everyone who shows a number less than the previous month.

Is it possible to perform that task? because as far as I have been able to search, it only allows me based on the beginning of the numbers in time.

Thanks a lot!

[v-eqin-msft]

Hi @Syndicate_Admin ,

Thanks for your feedback! 😀

It seems that your issue has been solved, please kindly Accept a reply as the solution to make the thread closed. More people will benefit from it.

Best Regards,
Eyelyn Qin

[v-eqin-msft · Accepted solution]

Hi @Syndicate_Admin ,

I have created a table for test:

If you want to compare the value of current month and previous month, as set different icons for them, please try:

Icon Measure =
var _previous= CALCULATE(SUM('Table'[Value]),FILTER(ALL('Table'),[CANAL]=MAX('Table'[CANAL]) && FORMAT([Date],"yyyy-mm")= FORMAT(EOMONTH(MAX('Table'[Date]),-1),"yyyy-mm" )))
return SWITCH(TRUE(), SUM('Table'[Value])>_previous,"SignMedium", SUM('Table'[Value])=_previous,"SignLow","CircleHigh")

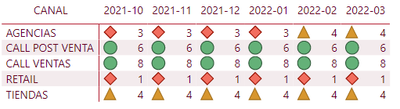

Output:

Best Regards,
Eyelyn Qin
If this post helps, then please consider Accept it as the solution to help the other members find it more quickly.

[Syndicate_Admin]

Hello, Eyelyn!

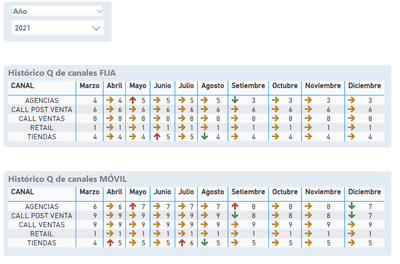

Thank you very much for your help, I have tried and the solution is valid. Just to tell you that I found another solution to get the month-to-month comparison that was through a quick measurement (month-to-month variation) and associating the dates to a calendar table, that is, I do not take as a basis the dates of my initial table. That helped me and now I can get the results from month to month:

Best regards!!

[Syndicate_Admin]

Hello dvalderaa,

Could you please share with me the formulation of the quick measure for the calculation, I am just wanting to do the same in a report and I could not.

Thank you.

[Syndicate_Admin]

Hello

Esta formula use:

Variacion_mensual =

IF(

ISFILTERED('Calendario_base'[Date]),

ERROR("The rapid measure of time intelligence can only be grouped or filtered using the data hierarchy provided by Power BI or by the main data column."),

Where __PREV_MONTH =

CALCULATE(

Max('Historical'[Q_prod]),

DATEADD('Calendario_base'[Date].[Date], -1, MONTH)

)

RETURN

DIVIDE(

Max('Historical'[Q_prod]) - __PREV_MONTH,

__PREV_MONTH

)

)

[Syndicate_Admin]

Many grasi, however not knowing the name of your fields in the model confuses me a little a couple of things, for example that this is for you ('Historical'[Q_prod]) and as you have formed the calendar table by the following 'Calendario_base'[Date].[ Date].

Would there be a possibility to share perhaps the model to understand? or if you could make a small sample of it and share it in case maybe it is confidential data and you can not share it, it would really help me for a work report
