Donut values as percentage of a total amount

[DDONE1]

Hi - can you guide as to how go create the following

[Ritaf1983 · Accepted solution]

Hi @DDONE1
To get the desired visual you can use a combination of donnuts and cards.

To get the donuts:

1. Put all the needed categories on the graph:

2. switch off all the elements (legend, title, data labels)

3. Format the colors of slices according to the color that you need to show as a "main" and a hole radius:

4. sort the donut by value:

5. repeat all this for the other categories : (I did for 3, because of a laziness 🙂 )

For the values in "Holes"

Create measures, for value, percent of the total, and combination with the category name

Total value = SUM('Table'[value])

Percent = divide([Total value],CALCULATE([Total value],all('Table'[Category])))

Don = SELECTEDVALUE('Table'[Category]) & UNICHAR(10)&FORMAT([Total value],"0,0")&UNICHAR(10)&FORMAT('Table'[Percent],"0%")

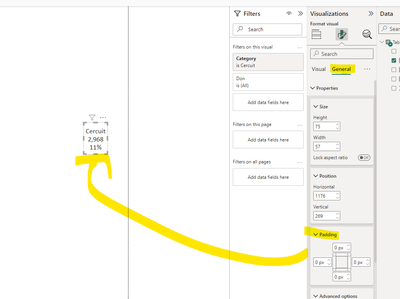

6. put the last measure on the card, switch off  the label, and modify the font size:

to save white spaces also make all padding of card 0

7. put the card at the donut center and filter by the donuts' marker's category

8. repeat these steps for all your donuts, result:

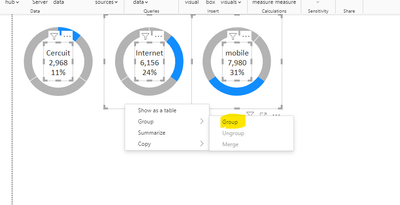

9. group all this "construction" :

Pbix is attached
