Hello all - I have a business request to conditionally format 2 date lines in a table and highlight the values red if we're within 90 days of the date. I tried with ChatGPT, but it couldn't get me there unfortunately. So I need actual human help 🙂
Here's a sample of my table as a Table visual:
Attribute | Formatted Value |
Overall Project Duration (Months) | 10 Months |
Below Grade Construction | |
Above Grade Construction | |
Time to Substantial Performance | 0 Months |
Effective Date | 2022-10-31 |
Expiration Date | 2024-05-01 |
Owner (OCIP/CCIP) | Test |
# of Floors | 3 |
# of Parking Spaces | 9 |
# of Suites | '- |
Procurement Status | 100% |
Above Grade (SF) | 10,339 |
Below Grade (SF) | '- |
Total (SF) | 10,339 |
Asset Class | Mixed-Use |
Here's a sample of the unpivoted table in Power Query before being loaded:
Attribute | Value | DataType | Format | Value as Number | |
Overall Project Duration (Months) | 10 Months | Project Info | null | null | |
Below Grade Construction | Project Info | null | null | ||
Above Grade Construction | Project Info | null | null | ||
End Date | 2028-04-05 | Project Info | null | null | |
Time to Substantial Performance | 0 Months | Project Info | null | null | |
Effective Date | 2022-10-31 | Project Info | null | null | |
Expiration Date | 2024-05-17 | Project Info | null | null | |
Asset Class | Residential/Mixed-Use | Project Info | null | null | |
# of Floors | 1 | Project Info | #,##0;(#,##0) | 1 | |
# of Parking Spaces | 4 | Project Info | #,##0;(#,##0) | 4 | |
GCA Above Grade (SF) | 10339 | Project Info | #,##0;(#,##0) | 10,339 | |
Procurement Status | 1 | Project Info | #,##%;(#,##%) | 1 | |
GCA Total (SF) | 10339 | Project Info | #,##0;(#,##0) | 10,339 | |
Project Stage | Construction | Project Info | null | null | |
Start Date | 2023-05-29 | Project Info | null | null |
And here's my existing DAX that is for the "Formatted Value" measure:
Formatted Value =
VAR _Formatting =
SELECTEDVALUE ( 'Project_Info - Unpivoted'[Format] )
RETURN
SWITCH (
TRUE (),
OR (
FIRSTNONBLANK (
'Project_Info - Unpivoted'[Value],
'Project_Info - Unpivoted'[Value]
) = "0",
ISBLANK (
FIRSTNONBLANK (
'Project_Info - Unpivoted'[Value],
'Project_Info - Unpivoted'[Value]
)
)
), "-",
ISBLANK ( _Formatting ),
FIRSTNONBLANK (
'Project_Info - Unpivoted'[Value],
'Project_Info - Unpivoted'[Value]
),
FORMAT ( SUM ( 'Project_Info - Unpivoted'[Value as Number] ), _Formatting )
)
What I need is the DAX query, in addition to the current formatting being applied, is check if the value for Expiration Date or Effective Date is within 90 days, and if it is, then highlight the font in red, for example.
Solved! Go to Solution.
Hi @peterg0417
Thanks for your explaination, please try this:
First of all, I add a measure:
Measure =
VAR _DateofAttribute = SELECTEDVALUE('Table'[Attribute]) = "Effective Date" || SELECTEDVALUE('Table'[Attribute]) = "Expiration Date"
VAR _DateDiff = IF(
_DateofAttribute,
ABS(DATEDIFF(
DATEVALUE(SELECTEDVALUE('Table'[Formatted Value])),
TODAY(),
DAY
))
)
RETURN
IF(
_DateDiff <> BLANK() && _DateDiff < 90,
"Red"
)
Then click the [Formatted Value] field and choose the Conditional formatting > Font color
Choose Field value and select the measure in the what field should we base this on? multi-check box.
The result is as follow:
Best Regards
Zhengdong Xu
If this post helps, then please consider Accept it as the solution to help the other members find it more quickly.
To achieve the conditional formatting you want in Power BI for highlighting dates that are within 90 days of the current date, you'll need to use a combination of DAX for calculating the days left and Conditional Formatting in the table visual settings. Here’s a step-by-step process on how to set this up:
### Step 1: Calculate Days Remaining
First, create a new measure in your model that calculates the number of days from today until the Expiration Date and Effective Date.
```DAX
Days Until Expiration =
DATEDIFF(
TODAY(),
SELECTEDVALUE('Project_Info - Unpivoted'[Expiration Date]),
DAY
)
Days Until Effective =
DATEDIFF(
TODAY(),
SELECTEDVALUE('Project_Info - Unpivoted'[Effective Date]),
DAY
)
```
### Step 2: Adjust the Formatted Value Measure
You need to adjust your existing "Formatted Value" measure to include the logic for checking if the dates are within 90 days. Here's how you can modify your DAX formula:
```DAX
Formatted Value =
VAR _Formatting = SELECTEDVALUE('Project_Info - Unpivoted'[Format])
VAR _ExpirationDays = [Days Until Expiration]
VAR _EffectiveDays = [Days Until Effective]
VAR _Attribute = SELECTEDVALUE('Project_Info - Unpivoted'[Attribute])
RETURN
SWITCH (
TRUE(),
ISBLANK(_Formatting), FIRSTNONBLANK('Project_Info - Unpivoted'[Value], 'Project_Info - Unpivoted'[Value]),
OR (
FIRSTNONBLANK('Project_Info - Unpivoted'[Value], 'Project_Info - Unpivoted'[Value]) = "0",
ISBLANK(FIRSTNONBLANK('Project_Info - Unpivoted'[Value], 'Project_Info - Unpivoted'[Value]))
), "-",
(_Attribute = "Expiration Date" && _ExpirationDays <= 90) || (_Attribute = "Effective Date" && _EffectiveDays <= 90),
FORMAT(FIRSTNONBLANK('Project_Info - Unpivoted'[Value], 'Project_Info - Unpivoted'[Value]), _Formatting) & " - Highlight",
FORMAT(SUM('Project_Info - Unpivoted'[Value as Number]), _Formatting)
)
```
### Step 3: Apply Conditional Formatting in Power BI Visual
Now, apply the conditional formatting to the table visual:
1. **Select the table visual** you are using to display your data.
2. **Navigate to the conditional formatting options** for the column where your dates are displayed.
3. **Choose to format by rules** and select the field for which you have created the days remaining measure (like `Days Until Expiration`).
4. **Set the rules** such as "if less than or equal to 90" then set text color to red.
### Additional Considerations
- Ensure that your date fields (`Effective Date` and `Expiration Date`) are correctly formatted as dates in Power BI. This impacts how DATEDIFF calculates days.
- The highlighting text "- Highlight" in the DAX formula is just a placeholder to show how you could append additional text or symbols to highlight these entries. You can remove this or adjust it based on your needs, as the primary highlighting would be done via Conditional Formatting in the visual settings.
By following these steps, your Power BI report should now be able to dynamically highlight dates within 90 days from today in red, enhancing visibility for urgent or upcoming deadlines.
@AnalyticsWizard wrote:### Step 3: Apply Conditional Formatting in Power BI Visual
Now, apply the conditional formatting to the table visual:
1. **Select the table visual** you are using to display your data.
2. **Navigate to the conditional formatting options** for the column where your dates are displayed.
3. **Choose to format by rules** and select the field for which you have created the days remaining measure (like `Days Until Expiration`).
4. **Set the rules** such as "if less than or equal to 90" then set text color to red.
Thank you for your help, but not sure this accomplishes what I need.
I need only the rows with the 2 dates (Effective Date and Expiration Date) to be red if they are less than 90 days away. Whereas this formatting changes the entire column to red, and I can only set the rules on 1 field (Days Until Effective OR Days Until Expiration)
Hi @peterg0417
Althrough I've read your post once and once again, I haven't understand what is your expected outcome.
Could you please provide your expected result with backend logic and special examples?
Best Regards
Zhengdong Xu
If this post helps, then please consider Accept it as the solution to help the other members find it more quickly.
Attribute | Formatted Value |
Overall Project Duration (Months) | 10 Months |
Below Grade Construction | |
Above Grade Construction | |
Time to Substantial Performance | 0 Months |
Effective Date | 2022-10-31 |
Expiration Date | 2024-05-01 |
Owner (OCIP/CCIP) | Test |
# of Floors | 3 |
# of Parking Spaces | 9 |
# of Suites | '- |
Procurement Status | 100% |
Above Grade (SF) | 10,339 |
Below Grade (SF) | '- |
Total (SF) | 10,339 |
Asset Class | Mixed-Use |
Please see "Expiration Date". The date is highlighted in red because it is within 90 days. I want to apply this conditional format within the existing DAX measure, "Formatted Value" that I provided above. For Expiration Date and Effective Date.
The issue is that The values are all text, unless it's a number. If it's a number then I apply a custom format string to it, from the variable "_Formatting"
Hi @peterg0417
Thanks for your explaination, please try this:
First of all, I add a measure:
Measure =
VAR _DateofAttribute = SELECTEDVALUE('Table'[Attribute]) = "Effective Date" || SELECTEDVALUE('Table'[Attribute]) = "Expiration Date"
VAR _DateDiff = IF(
_DateofAttribute,
ABS(DATEDIFF(
DATEVALUE(SELECTEDVALUE('Table'[Formatted Value])),
TODAY(),
DAY
))
)
RETURN
IF(
_DateDiff <> BLANK() && _DateDiff < 90,
"Red"
)
Then click the [Formatted Value] field and choose the Conditional formatting > Font color
Choose Field value and select the measure in the what field should we base this on? multi-check box.

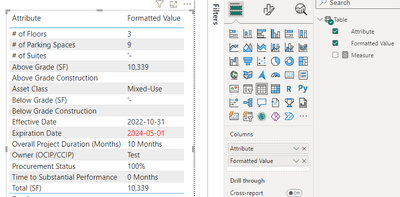

The result is as follow:
Best Regards
Zhengdong Xu
If this post helps, then please consider Accept it as the solution to help the other members find it more quickly.
