Mapping between four table

[Anonymous]

Hi, I have four type of tables and I must map them to get count result for reporting but I have issues about it. Please help me on solving this problem. First I want to show you my minimal design this columns needed for mapping

My employee table

id	name	position_id
1	Nabi	1
2	John	2
3	Jack	1

My position table

id	name
1	Software Developer
2	Data analyst

My training table

id	name
1	Power bi
2	SQL
3	C#

My pos_tra_mapping table. This is how I managed training for position like(man - for mandatory, asap - for As soon as possible, pref - for Preffered trainings)

id	position_id	training_id	type
1	1	1	man
2	1	2	pref
3	1	3	asap
4	2	2	asap

And finally my emp_tra_mapping. Is employee passed this trainings or not. At the end I must create matrix for trainings will show after this table how my report must look like.

id	emp_id	training_id	training_date
1	1	1	2020-06-01
2	1	2	null
3	1	3	2019-06-01
4	2	2	2020-06-01
5	3	1	null
6	3	2	null
7	3	3	2019-06-01

Now lets look at my final report. Must train gets from emp_tra_mapping where his position in pos_tra_mapping for selected training is "man". Mandatory already trained gets count from emp_tra_mapping where not null and where his position in pos_tra_mapping for selected training is "man". pref and asap also as an mandatory

Courses	Power bi	SQL	C#
Mandatory must train	2	0	0
Mandatory already trained	1	0	0
ASAP must train	0	1	2
ASAP already trained	0	1	2
Pref must train	0	2	0
Pref already trained	0	0	0

Hope you understand me what I want 😞

[Anonymous]

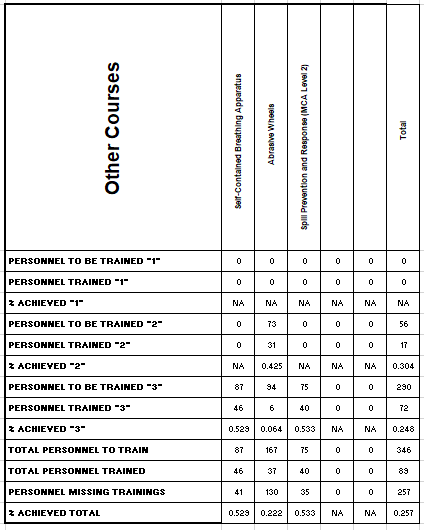

This is the excell form, and what I wnt from my power bi to create this kind of table. Im having issues of percentage in rows

[Pragati11]

Hi @Anonymous ,

Just want to check if you have got any relationships between these tables set-up in Power BI?

If yes, can you share screenshot on the data model please?

Thanks,

Pragati

[Anonymous]

Yes sure this is my data model, I already merged tables and already done with this but I need help on modeling report like my excell file.

[lbendlin]

Based on your business logic follow the filter direction arrows in your data model and see if they allow you to apply the desired filters.  Adjust the direction as needed.
